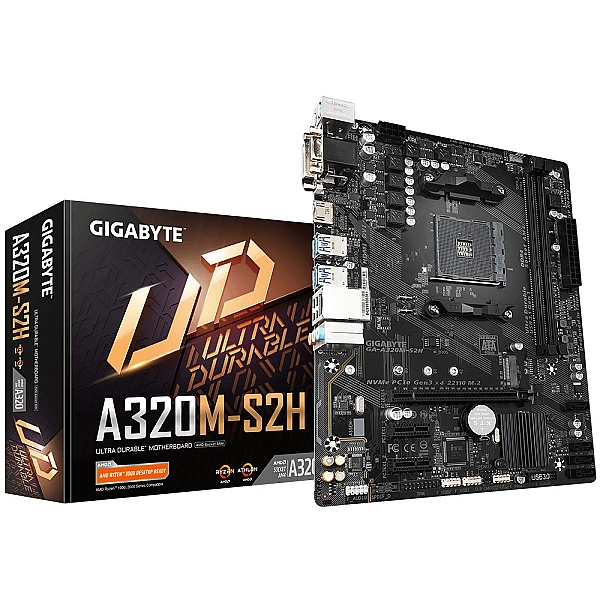

Carte mère Gigabyte A320M-S2H AM4

Carte mère Gigabyte A320M-S2H AM4

115,90 €

Garantie 2 ans

Référence
A320M-S2H
Rupture de stock
Carte Mère AMD A320 Ultra Durable VRM Numérique Hybride, 4x NVMe PCIe 3.0 22110 M.2, Réseau Realtek GbE avec cFosSpeed, Smart Fan 5, 3 Sorties Vidéos, Résistances Anti-souffre

  • Pour processeurs AMD Ryzen™ 3ème Génération / Ryzen™ 2ème Génération / Ryzen™ 1ère Génération / Ryzen™ 2ème Génération avec Radeon™ Vega Graphics / Ryzen™ 1ère Génération avec Radeon™ Vega Graphics / Athlon™ avec Radeon™ Vega Graphics / Séries A 2ème Génération / Athlon X4
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • VRM Numérique Hybride avec MOSFETs à faible RDS(on)
  • Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2
  • Affichage Multiple avec HDMI, DVI et D-Sub
  • Condensateurs Audio Haut de Gamme et Audio Noise Guard
  • Réseau Realtek® Gigabit avec cFosSpeed Internet Accelerator Software
  • Smart Fan 5 avec 5 Sondes de Température et 2 Connecteurs Hybrides pour Ventilateur
  • Résistances Anti-souffre

  • Processeur
    1. AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A320
  • Mémoire
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Actual support may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Carte Graphique Intégrée
    Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    4. Support for S/PDIF Out
  • Réseau
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Port d'expansion
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Interface de Stockage
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
      * Actual support may vary by CPU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.1 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    13. 1 x speaker header
    14. 1 x Clear CMOS jumper
    15. 1 x chassis intrusion header
  • Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 4 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • Contrôleur d'Entrée/Sortie
    1. iTE® I/O Controller Chip
  • Monitorage Matériel
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Fonctionnalités Exclusives
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Logiciels Fournis
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Système d'Exploitation
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Dimensions
    1. Micro ATX Form Factor; 24.4cm x 19.5cm
